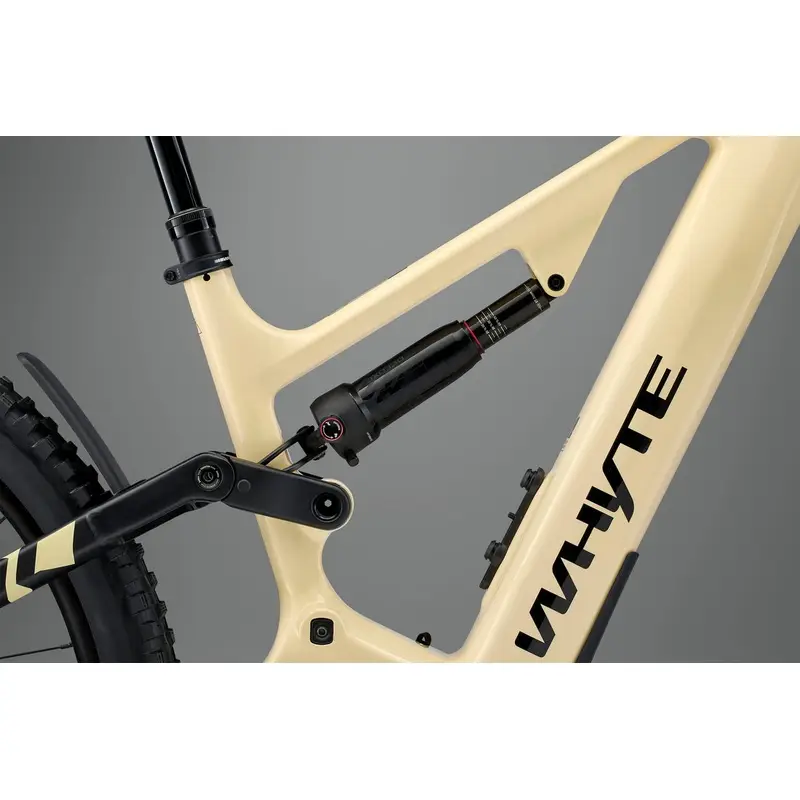

- Telaio: Triangolo in carbonio, carro in alluminio, serie sterzo conica, passaggio interno dei cavo, perno posteriore 12x148mm
- Motore: Bosch Performance Line CX Smart System (BDU38), 250W, picco 600W, 25km/h, 85Nm

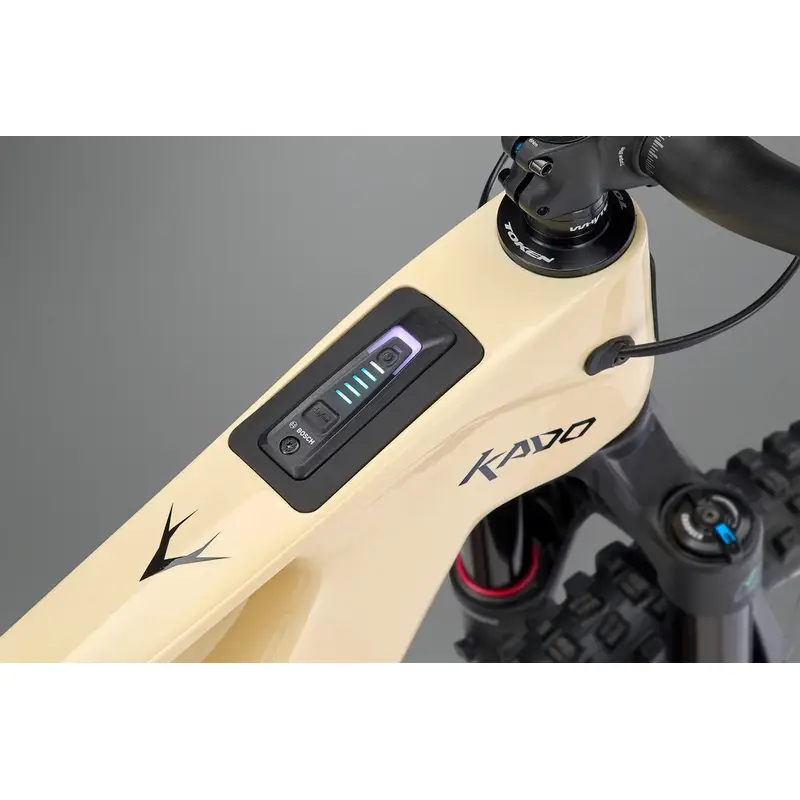

- Display: Mini Remote + Purion 400
- Batteria: Bosch PowerTube 800Wh, tempo di carica: 50% in 2,3 ore da zero e al 100% in 7 ore + range extender Bosch PowerMore 250Wh
- Caricabatterie: Caricatore Rapido, 4A

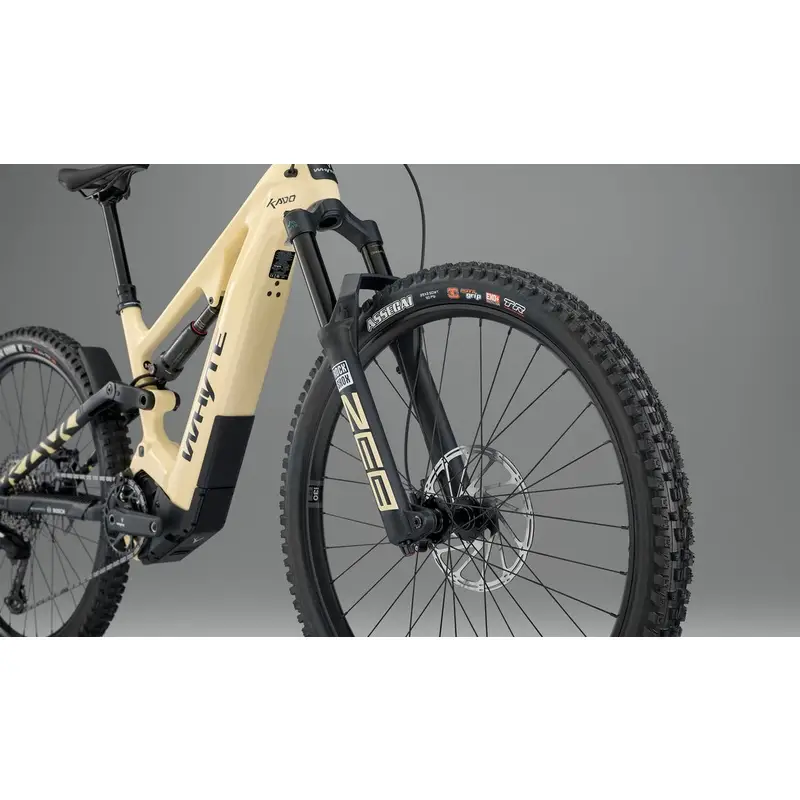

- Forcella: RockShox ZEB Select, 160mm travel, 44mm offset, DebonAir, Charger RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
- Ammortizzatore: RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound, custom tuned for Whyte

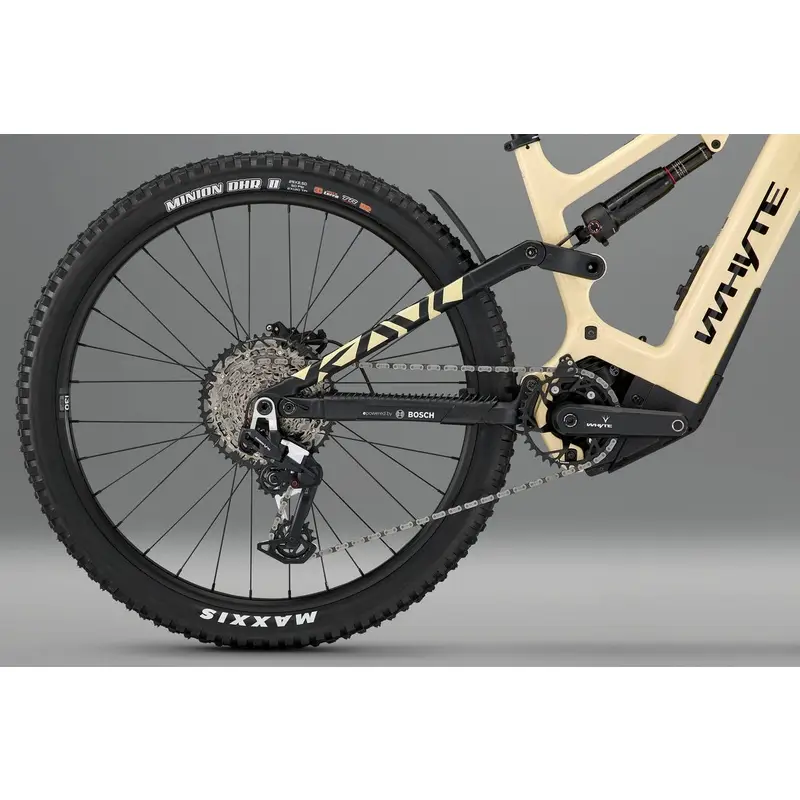

- Cambio: SRAM Eagle 90 T-Type mechanical, 12v
- Deragliatore: /
- Comando cambio: SRAM Eagle 70, 12v
- Pacco pignoni: SRAM XS 1270, T-Type, 10-52T, 12v
- Catena: SRAM Eagle 70
- Corona: SRAM Direct mount 36D
- Pedivelle: Whyte 155mm ISIS arms

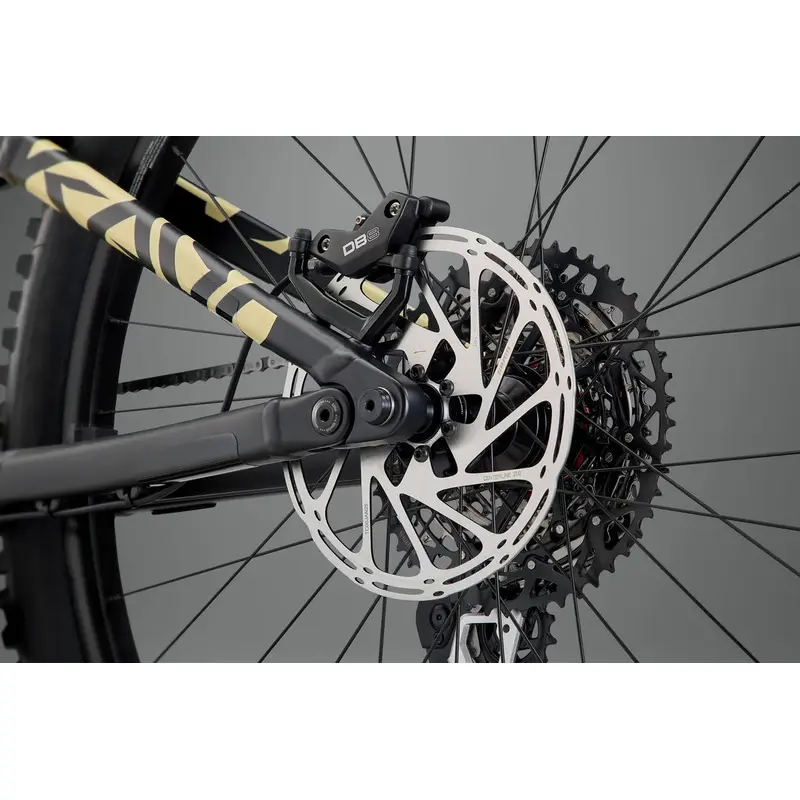

- Freno anteriore: SRAM DB8 Stealth, 4 pistoni
- Freno posteriore: SRAM DB8 Stealth, 4 pistoni
- Dischi: Sram Centerline 223mm / Sram Centerline 200mm
- Copertone anteriore: Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, Dual Compound, folding bead
- Copertone posteriore: Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound
- Cerchi: WTB ST Tough / WTB HTZ Trail 30mm
- Mozzo anteriore: 15x110mm Boost, 6 bolt
- Mozzo posteriore: 12x148mm Boost spacing, SRAM XD steel driver, 6 Bolt
- Manubrio: Whyte Custom 6061 alloy, 30mm rise, 35mm, larghezza 800mm
- Attacco manubrio: Whyte, 35mm Extension, 35mm Bar Bore
- Sella: Whyte Custom
- Reggisella: TranzX +RAD 34.9mm
- Peso massimo consentito: 150 kg
- Peso: 25.4Kg (taglia M)
